Description

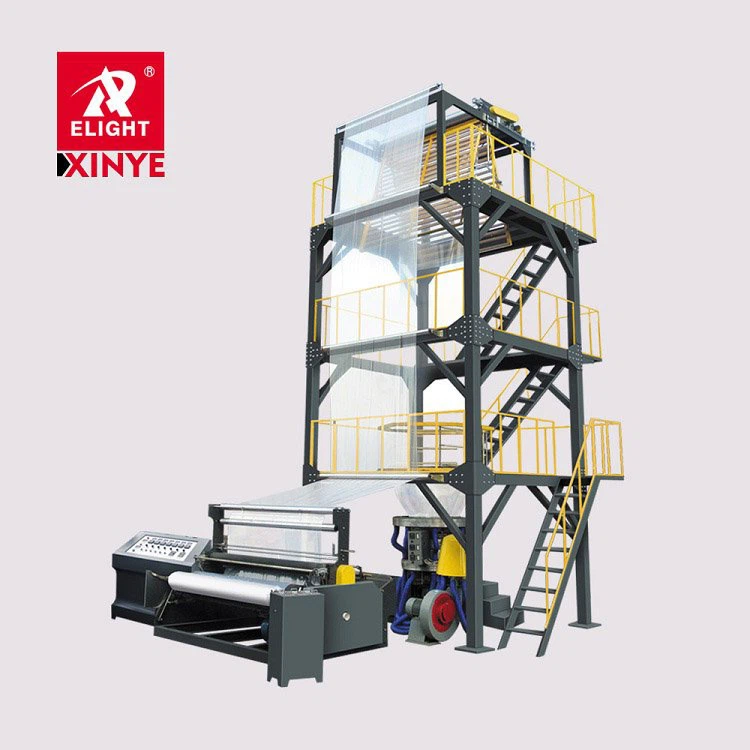

Over the years, we have been focusing on the R&D and manufacturing of high-end film blowing machines, and have provided the market with many cost-effective film blowing machines and professional after-sales service. We provide a variety of machines, such as single-layer film blowing machine, AB double-layer film blowing machine, ABA/ABC three-layer film blowing machine, special film blowing machine for agricultural film, ultra-wide industrial film making machine and so on. This Agriculture Film Blowing Machine is suitable for the production of HDPE, LDPE, LLDPE plastic films, and for the manufacture of composite films, packaging films, agricultural covering films, textiles, and garment bags. The machine is also equipped with three-axis drive hard-tooth surface reducer, traction variable frequency speed regulation, independent centrifugal fan, and air compressor.
Features
* The parameters of the Agriculture Film Blowing Machine can be adjusted, you can modify it according to the actual situation.
* The main motor adopts variable frequency speed regulation to increase the stability of speed regulation, and at the same time, it can save 30% of electricity.
* The screw barrel is made of chrome molybdenum aluminum and is nitrided, which makes it have good hardness and corrosion resistance.
* The traction frame adopts a lifting design, which is very convenient.
Specification
Model | SJ-80/FM1500 | SJ-100/FM2000 | SJ-110/FM2500 | SJ-120/FM3000 |
Screw Diameter | 80mm | 100mm | 110mm | 120mm |
Screw Ratio | L/D28:1 | L/D28:1 | L/D28:1 | L/D28:1 |
Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
Output of Single-desk Extrude Machine | 86kg/h | 140kg/h | 180kg/h | 220kg/h |
Power of Main Motor | 30kw | 55kw | 75kw | 90kw |
Caliber of Film Head | Φ150-300mm | Φ500mm | Φ600mm | Φ750mm |
Rotational Mode of Machine Head | Continuous rotate | Continuous rotate | Continuous rotate | Continuous rotate |
Single-sided Thickness of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
Max. Folding Width of Film | 1500mm | 2000mm | 2500mm | 3000mm |
Total Power | 56kw | 88kw | 110kw | 145kw |
Weight of Machine | 6000kg | 7600kg | 9800kg | 12000kg |
Overall Dimensions | 7000×2900×5500mm | 8000×3500×8000mm | 9000×4200×9600mm | 10000×4600×11000mm |
Why choose us?
- We pay close attention to every detail during the manufacturing process to ensure quality and consistency.
- Over the years, the company has sold various products to many countries and regions with excellent product performance, perfect quality assurance and very considerate after-sales service, and these products have been unanimously praised by customers at home and abroad.
- We believe in open communication and collaboration with our customers to find the best solutions for their needs.
- We have to achieve quantitative growth while striving to achieve qualitative improvement and ensure the quality of each finished Agriculture Film Blowing Machine.
- Our machines are built to be reliable and easy to maintain, reducing downtime and costs for our customers.
- We enhance the competitiveness of our enterprise through science and technology, and our business performance keeps growing with remarkable economic and social benefits.
- We pride ourselves on our ability to offer customized solutions to meet the unique needs of each customer.
- Continue to enhance the influence of our brand, make every effort to build a first-class park, and strive to become an important engine for our company to build a world-class comprehensive enterprise.
- We offer ongoing support and maintenance to ensure our customers’ machines continue to perform at the highest level.
- Since its establishment, the company has established long-term and stable business trade partnerships with manufacturers in various regions by virtue of its good reputation and quality services.
