Description

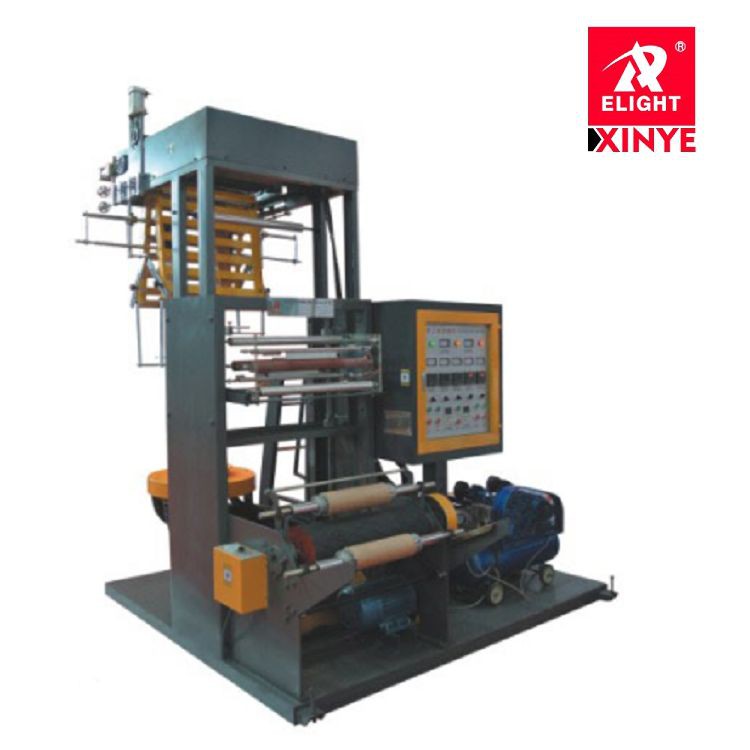

The Mini Film Blowing Machine has a very high output (up to 60 kg/h) and has good energy-saving performance. The simple and reasonable design makes it easy to operate, thus greatly saving your labor cost. The reasonable actual structure also makes it have a longer service life, and the follow-up maintenance is also more convenient. Extrusions, barrels, screws are made of high-quality alloy steel, and we also specialize in nitriding to improve the durability of these equipments. The machine is suitable for blowing LDPE, HDPE and LLDPE plastic films, which are widely used in food, garbage bags, garments, luggage, T-shirt bags and other packaging areas.
Main feature

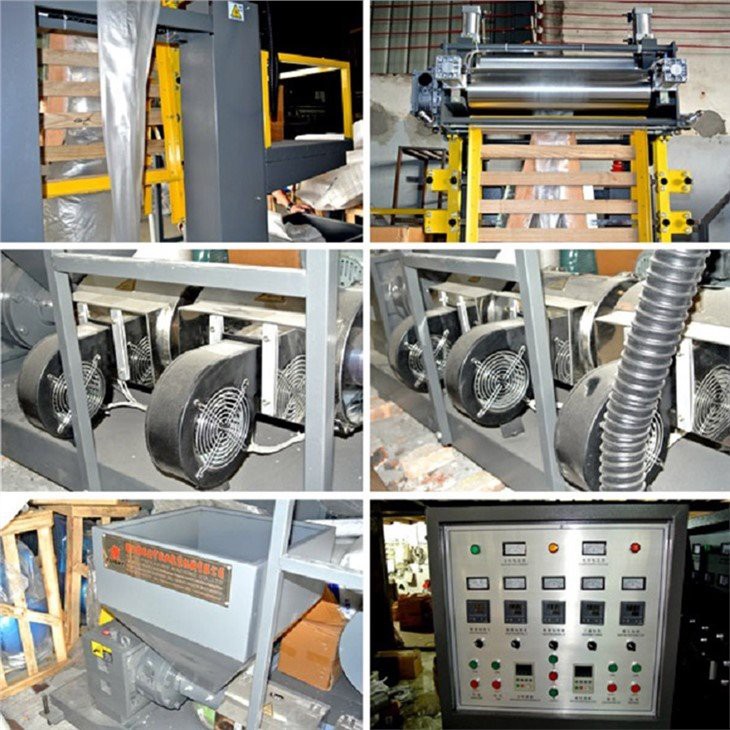

1) The linear structure is simple and easy to install and maintain.
2) Adopt advanced world-famous brand components, such as Fotek SSR, LS contactor, etc.
3) 38 CRMOALA screw and barrel.
4) 600 mm LDPE can also be made with double air rings.
5) It is easy to operate, and the winding rollers are uniform.
Specification
| Mini Film Blowing Machine | ||
Model | XYMN-45 | XYMN-55 |
Screw Diameter | 45mm | 55mm |
Screw Ratio | L/D30:1 | L/D30:1 |
Screw speed | 10-100r/min | 10-100r/min |
Power of Main Motor | 15KW | 18.5KW |
Main Output | 45kg/h | 60kg/h |
Max. Folding Width of Film | 600mm | 800mm |
Single-sided Thickness of Film | 0.008-0.10mm | 0.008-0.10mm |
Total Power | 35Kw | 38.5Kw |
Overall Dimensions | 2500kg | 3000kg |
Weight of Machine | 4500x2000x3700mm | 4800x2000x4000mm |
Why choose us?
- We are committed to sustainability and reducing our environmental impact as a company.
- No matter now or in the future, what our company brings to your products is the innovation of reputation and quality, which is the bridge to realize your expectation and dream.
- We have a reputation for delivering on our promises and meeting customers’ deadlines.
- Our operating policy is to increase scale, adjust structure, and reduce costs.
- Our machines are designed to be easy to operate and require minimal maintenance.
- As an experienced group we also accept custom-made orders.
- We pride ourselves on delivering the best possible solutions to our customers’ needs.
- We constantly improve the level of enterprise technology and equipment, thus ensuring that Mini Film Blowing Machine quality is always superior.
- Our Film Blowing Machines are built to last, providing reliable performance for years to come.
- Respect for suggestions and choices is the soul of the company's development.
